Power Factor Improvement
Power Factor Improvement
Power Factor Improvement involves installing capacitive energy to counter inductive energy in an electrical system. Poor power factor is caused by inductive loads such as motors, coils, transformers. These loads require reactive power to generate magnetic fields thus leading to a lagging current and hence low power factor. Energy Act of 2019 as set out by Energy & Petroleum Regulatory Authority (EPRA ) requires that power factor in an electrical system should be at or above 0.9. A poor power factor surcharge is applied on monthly KPLC bill each time power factor is below 0.9.

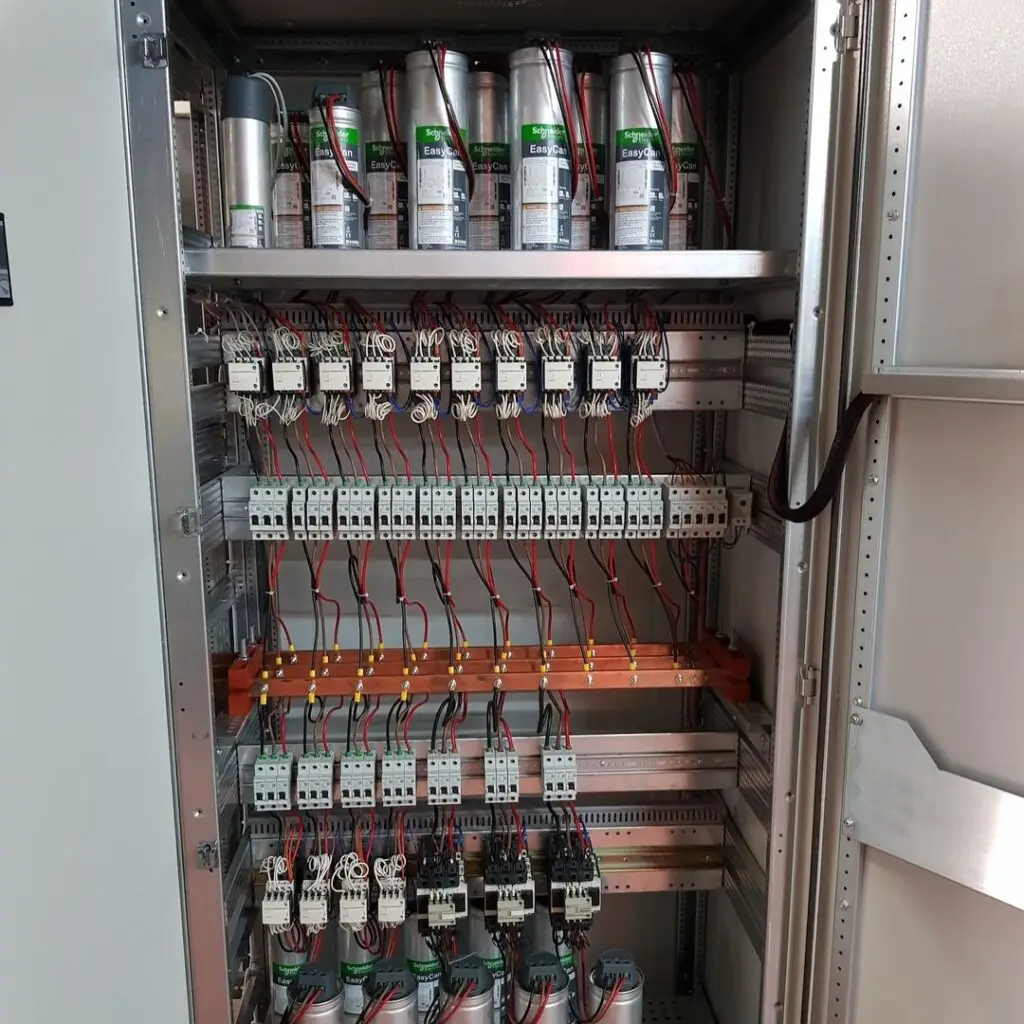

Popular power factor improvement system comprises of the following
These components are available in various world-reknown manufacturers such as Lovato , Schneider Electric , ABB, Epcos
Seamless Process Automation Limited is authorized by EPRA to carry out eletrical installation across Kenya. We design, manufacture, install, commission and maintain. Talk to us on 0722 880452 or email: sales@seamless-automation.com
40KVAR Capacitor Add to cart
Power Factor
Features for 40KVAR Capacitor
Size: 40KVAR
Voltage: 440VAC
Over Voltage Tolerance: 10%
Service life: 13,000hours
Dielectric Material: Metallized polypropylene film with Zn/Al alloy
Installation: Indoors
Ingress: IP20
Temperature: -25 to 50 degrees
30KVAR Capacitor Add to cart
Power Factor
Features for 30KVAR Capacitor
Size: 30KVAR
Voltage: 440VAC
Over Voltage Tolerance: 10%
Service life: 13,000hours
Dielectric Material: Metallized polypropylene film with Zn/Al alloy
Installation: Indoors
Ingress: IP20
Temperature: -25 to 50 degrees
50KVAR Contactor Add to cart
Power Factor
Features
Product 50KVAR capacitor switching contactor
Control voltage: 230VAC
Auxiliary contact: 1NO 1NC
Durability: 300,000 cycles
Mounting: DIN Rail
Maximum operating rate: 240 cycles per hour
Protection: IP20
25KVAR Contactor Add to cart
Power Factor
Features
Product 25KVAR capacitor switching contactor
Control voltage: 230VAC
Auxiliary contact: 1NO 1NC
Durability: 300,000 cycles
Mounting: DIN Rail
Maximum operating rate: 240 cycles per hour
Protection: IP20
12.5KVAR Contactor Add to cart
Power Factor
Features
Product 12.5KVAR capacitor switching contactor
Control voltage: 230VAC
Auxiliary contact: 1NO 1NC
Durability: 300,000 cycles
Mounting: DIN Rail
Maximum operating rate: 240 cycles per hour
Protection: IP20

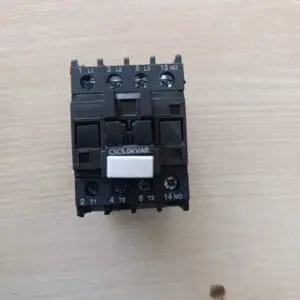

5KVAR Contactor Add to cart
Power Factor
Features
Product 5KVAR capacitor switching contactor
Control voltage: 230VAC
Auxiliary contact: 1NO 1NC
Durability: 300,000 cycles
Mounting: DIN Rail
Maximum operating rate: 240 cycles per hour
Protection: IP20
50KVAR Capacitor Add to cart
Power Factor
Features for 50KVAR Capacitor
Size: 50KVAR
Voltage: 440VAC
Over Voltage Tolerance: 10%
Service life: 13,000hours
Dielectric Material: Metallized polypropylene film with Zn/Al alloy
Installation: Indoors
Ingress: IP20
Temperature: -25 to 50 degrees

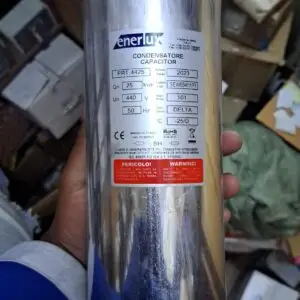

25KVAR Capacitor Add to cart
Power Factor
Features for 25KVAR Capacitor
Size: 25KVAR
Voltage: 440VAC
Over Voltage Tolerance: 10%
Service life: 13,000hours
Dielectric Material: Metallized polypropylene film with Zn/Al alloy
Installation: Indoors
Ingress: IP20
Temperature: -25 to 50 degrees
20KVAR Capacitor Add to cart
Power Factor
Features for 20KVAR Capacitor
Size: 20KVAR
Voltage: 440VAC
Over Voltage Tolerance: 10%
Service life: 13,000hours
Dielectric Material: Metallized polypropylene film with Zn/Al alloy
Installation: Indoors
Ingress: IP20
Temperature: -25 to 50 degrees
10KVAR Capacitor Add to cart
Power Factor
Features for 10KVAR Capacitor
Size: 10KVAR
Voltage: 440VAC
Over Voltage Tolerance: 10%
Service life: 13,000hours
Dielectric Material: Metallized polypropylene film with Zn/Al alloy
Installation: Indoors
Ingress: IP20
Temperature: -25 to 50 degrees
12.5KVAR Capacitor Add to cart
Power Factor
Features for 12.5KVAR Capacitor
Size: 12.5KVAR
Voltage: 440VAC
Over Voltage Tolerance: 10%
Service life: 13,000hours
Dielectric Material: Metallized polypropylene film with Zn/Al alloy
Installation: Indoors
Ingress: IP20
Temperature: -25 to 50 degrees

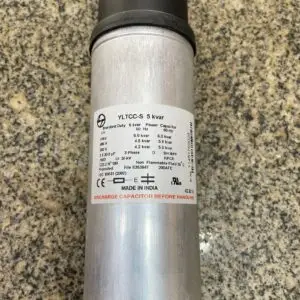

5KVAR Capacitor Add to cart
Power Factor
Features for 5KVAR Capacitor
Size: 5KVAR
Voltage: 440VAC
Over Voltage Tolerance: 10%
Service life: 13,000hours
Dielectric Material: Metallized polypropylene film with Zn/Al alloy
Installation: Indoors
Ingress: IP20
Temperature: -25 to 50 degrees
2.5KVAR Capacitor Add to cart
Power Factor
Features for 2.5KVAR Capacitor
Size: 2.5KVAR
Voltage: 440VAC
Over Voltage Tolerance: 10%
Service life: 13,000hours
Dielectric Material: Metallized polypropylene film with Zn/Al alloy
Installation: Indoors
Ingress: IP20
Temperature: -25 to 50 degrees
