Altivar

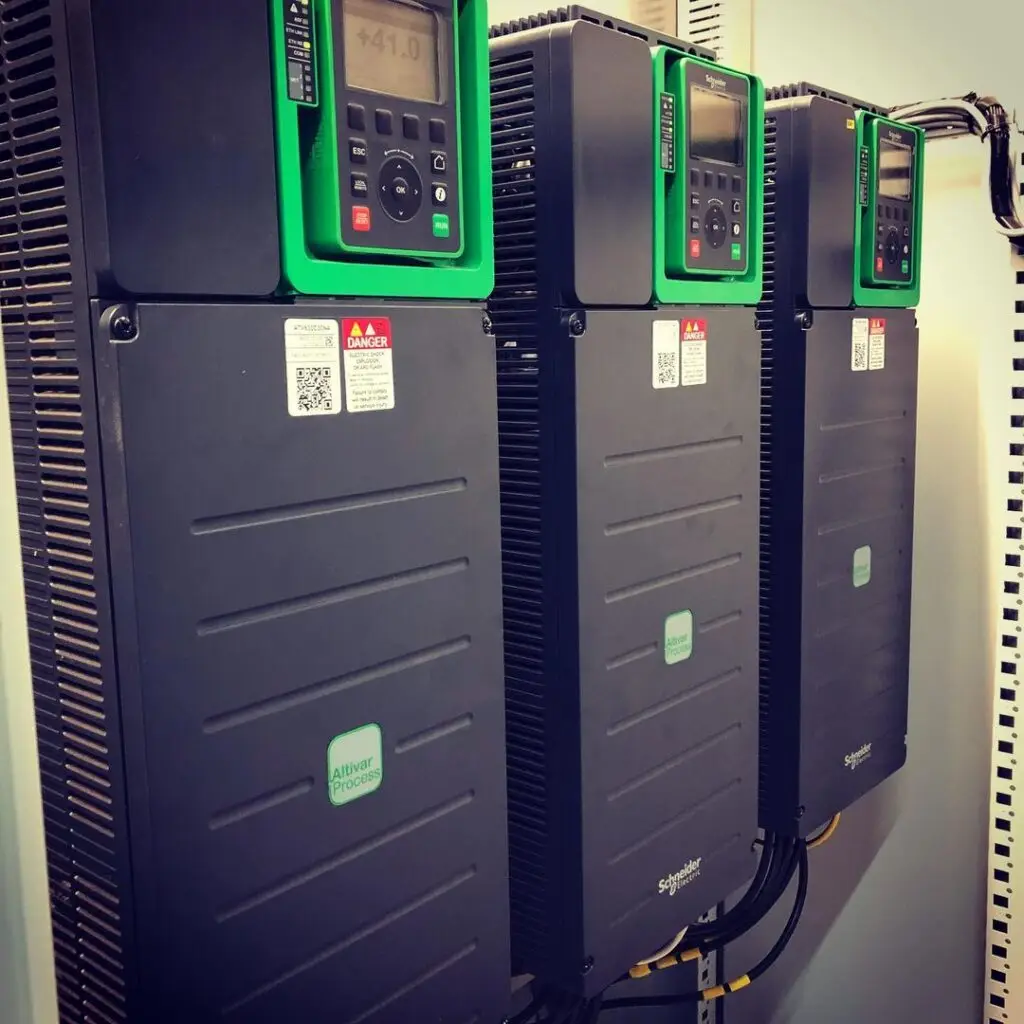

Altivar Process is the new comprehensive range of variable speed drives from Schneider Electric, covering the majority of industrial applications with two series:
– ATV600: drives designed for fluid management and processing and energy saving
– ATV900: drives designed for maximum productivity with exceptional motor control and connectivity
Altivar Process drives are specifically designed to meet the requirements of the following market segments:
- Oil & gas
- Mining, minerals & metals
- Consumer packaged goods (CPG)
- Water & wastewater
The Altivar Process 900 series is focused on maximum productivity with exceptional motor control and connectivity.
It offers special functions for industrial process segments:
- Excellent motor performance on any type of motor
- Total control of any kind of coupling in master/slave applications
- Network services to help ensure operation continuity even in case of connection breakdown
- Web server and data logging to help reduce downtime through rapid troubleshooting and preventive maintenance
We have warehouses in Nairobi and Mombasa. We provide a bespoke, personal and quality service with experienced engineers, sales and service departments โ along with fully qualified technicians to ensure the highest standards and level of expertise in design, assembly and installation of equipment.
You will access our seamless solutions by either emailing us on sales@seamless-automation.com, call +254 722 880452 or ordering online following product list below.
-
-
-
11kW Variable Speed Drive 3 phase Schneider Electric ATV320
Add to cart
11kW 3 phase Variable Speed Drive | Schneider Electric
Product Range |
Altivar Machine ATV320 |
Supply frequency |
50…60Hz – 5…5 % |
Network number of phases |
3 phases |
[Us] rated supply voltage |
380…480 V – 15…10 % |
Motor power |
11kW (heavy duty) |
Line current |
36.6 A at 380 V (heavy duty) |
Speed drive output frequency |
0.1โฆ599 Hz |
Output voltage |
<= power supply voltage |
-
7.5kW Variable Speed Drive Schneider Electric Altivar 630
Add to cart
7.5kW Variable Speed Drive
Product Range |
ย Altivar Process ATV600ย |
Product or component type |
Variable speed drive |
Product destination |
Asynchronous motors |
Synchronous motors |
Type of cooling |
Forced convection |
Supply frequency |
50…60 Hz – 5…5 % |
Network number of phases |
3 phases |
[Us] rated supply voltage |
380…480 V – 15…10 % |
Motor power |
7.5kW (normal duty) |
5.5kW (heavy duty) |
Line current |
13.8 A at 380 V (normal duty) |
10.5 A at 380 V (heavy duty) |
Speed drive output frequency |
0.1โฆ599 Hz |
Discrete input logic |
16 preset speeds |
Communication port protocol |
Modbus TCP |
Ethernet |
Modbus serial |
Output voltage |
<= power supply voltage |
-
5.5kW Variable Speed Drive Schneider Electric Altivar 630
Add to cart
5.5kW Variable Speed Drive
Product Range |
ย Altivar Process ATV600ย |
Product or component type |
Variable speed drive |
Product destination |
Asynchronous motors |
Synchronous motors |
Type of cooling |
Forced convection |
Supply frequency |
50…60 Hz – 5…5 % |
Network number of phases |
3 phases |
[Us] rated supply voltage |
380…480 V – 15…10 % |
Motor power |
5.5kW (normal duty) |
4kW (heavy duty) |
Line current |
10.4 A at 380 V (normal duty) |
8 A at 380 V (heavy duty) |
Speed drive output frequency |
0.1โฆ599 Hz |
Discrete input logic |
16 preset speeds |
Communication port protocol |
Modbus TCP |
Ethernet |
Modbus serial |
Output voltage |
<= power supply voltage |
-
4kW Variable Speed Drive Schneider Electric Altivar 630
Add to cart
4kW Variable Speed Drive
Product Range |
ย Altivar Process ATV600ย |
Product or component type |
Variable speed drive |
Product destination |
Asynchronous motors |
Synchronous motors |
Type of cooling |
Forced convection |
Supply frequency |
50…60 Hz – 5…5 % |
Network number of phases |
3 phases |
[Us] rated supply voltage |
380…480 V – 15…10 % |
Motor power |
4kW (normal duty) |
3kW (heavy duty) |
Line current |
7.6 A at 380 V (normal duty) |
6 A at 380 V (heavy duty) |
Speed drive output frequency |
0.1โฆ599 Hz |
Discrete input logic |
16 preset speeds |
Communication port protocol |
Modbus TCP |
Ethernet |
Modbus serial |
Output voltage |
<= power supply voltage |
-
3kW Variable Speed Drive Schneider Electric Altivar 630
Add to cart
3kW Variable Speed Drive
Product Range |
ย Altivar Process ATV600ย |
Product or component type |
Variable speed drive |
Product destination |
Asynchronous motors |
Synchronous motors |
Type of cooling |
Forced convection |
Supply frequency |
50…60 Hz – 5…5 % |
Network number of phases |
3 phases |
[Us] rated supply voltage |
380…480 V – 15…10 % |
Motor power |
3kW (normal duty) |
2.2kW (heavy duty) |
Line current |
5.8 A at 380 V (normal duty) |
4.5 A at 380 V (heavy duty) |
Speed drive output frequency |
0.1โฆ599 Hz |
Discrete input logic |
16 preset speeds |
Communication port protocol |
Modbus TCP |
Ethernet |
Modbus serial |
Output voltage |
<= power supply voltage |
-
2.2kW Variable Speed Drive Schneider Electric Altivar 630
Add to cart
2.2kW Variable Speed Drive
Product Range |
ย Altivar Process ATV600ย |
Product or component type |
Variable speed drive |
Product destination |
Asynchronous motors |
Synchronous motors |
Type of cooling |
Forced convection |
Supply frequency |
50…60 Hz – 5…5 % |
Network number of phases |
3 phases |
[Us] rated supply voltage |
380…480 V – 15…10 % |
Motor power |
2.2kW (normal duty) |
1.5kW (heavy duty) |
Line current |
4.3 A at 380 V (normal duty) |
3.1 A at 380 V (heavy duty) |
Speed drive output frequency |
0.1โฆ599 Hz |
Discrete input logic |
16 preset speeds |
Communication port protocol |
Modbus TCP |
Ethernet |
Modbus serial |
Output voltage |
<= power supply voltage |
-
1.5kW Variable Speed Drive Schneider Electric Altivar 630
Add to cart
1.5kW Variable Speed Drive
Product Range |
ย Altivar Process ATV600ย |
Product or component type |
Variable speed drive |
Product destination |
Asynchronous motors |
Synchronous motors |
Type of cooling |
Forced convection |
Supply frequency |
50…60 Hz – 5…5 % |
Network number of phases |
3 phases |
[Us] rated supply voltage |
380…480 V – 15…10 % |
Motor power |
1.5kW (normal duty) |
0.75kW (heavy duty) |
Line current |
3 A at 380 V (normal duty) |
1.7 A at 380 V (heavy duty) |
Speed drive output frequency |
0.1โฆ599 Hz |
Discrete input logic |
16 preset speeds |
Communication port protocol |
Modbus TCP |
Ethernet |
Modbus serial |
Output voltage |
<= power supply voltage |
-
0.75kW Variable Speed Drive Schneider Electric Altivar 630
Add to cart
0.75kW Variable Speed Drive
Product Range |
ย Altivar Process ATV600ย |
Product or component type |
Variable speed drive |
Product destination |
Asynchronous motors |
Synchronous motors |
Type of cooling |
Forced convection |
Supply frequency |
50…60 Hz – 5…5 % |
Network number of phases |
3 phases |
[Us] rated supply voltage |
380…480 V – 15…10 % |
Motor power |
ย 0.75kW (normal duty) |
0.37kW (heavy duty) |
Line current |
1.5 A at 380 V (normal duty) |
0.9 A at 380 V (heavy duty) |
Speed drive output frequency |
0.1โฆ599 Hz |
Discrete input logic |
16 preset speeds |
Communication port protocol |
Modbus TCP |
Ethernet |
Modbus serial |
Output voltage |
<= power supply voltage |
-
90kW Variable Speed Drive Schneider Electric Altivar 630
Add to cart
90kW Variable Speed Drive
Product Range |
ย Altivar Process ATV600ย |
Product or component type |
Variable speed drive |
Product destination |
Asynchronous motors |
Synchronous motors |
Type of cooling |
Forced convection |
Supply frequency |
50…60 Hz – 5…5 % |
Network number of phases |
3 phases |
[Us] rated supply voltage |
380…480 V – 15…10 % |
Motor power |
ย 90kW (normal duty) |
75kW (heavy duty) |
Line current |
152.6 A at 380 V (normal duty) |
134.3 A at 380 V (heavy duty) |
Speed drive output frequency |
0.1โฆ599 Hz |
Discrete input logic |
16 preset speeds |
Communication port protocol |
Modbus TCP |
Ethernet |
Modbus serial |
Output voltage |
<= power supply voltage |
-
75kW Variable Speed Drive Schneider Electric Altivar 630
Add to cart
75kW Variable Speed Drive
Product Range |
ย Altivar Process ATV600ย |
Product or component type |
Variable speed drive |
Product destination |
Asynchronous motors |
Synchronous motors |
Type of cooling |
Forced convection |
Supply frequency |
50…60 Hz – 5…5 % |
Network number of phases |
3 phases |
[Us] rated supply voltage |
380…480 V – 15…10 % |
Motor power |
ย 75kW (normal duty) |
55kW (heavy duty) |
Line current |
131.3 A at 380 V (normal duty) |
98.9 A at 380 V (heavy duty) |
Speed drive output frequency |
0.1โฆ599 Hz |
Discrete input logic |
16 preset speeds |
Communication port protocol |
Modbus TCP |
Ethernet |
Modbus serial |
Output voltage |
<= power supply voltage |
