Seamless Process Automation Limited

Sensors

Seamless Process Automation is a leading distributor and supplier of instruments and sensors in Kenya.

Established in 1998, Seamless Process Automation has earned a reputation as a leading distributor and supplier of a broad range of primary sensors, measuring instruments and systems to the manufacturing and process industries.

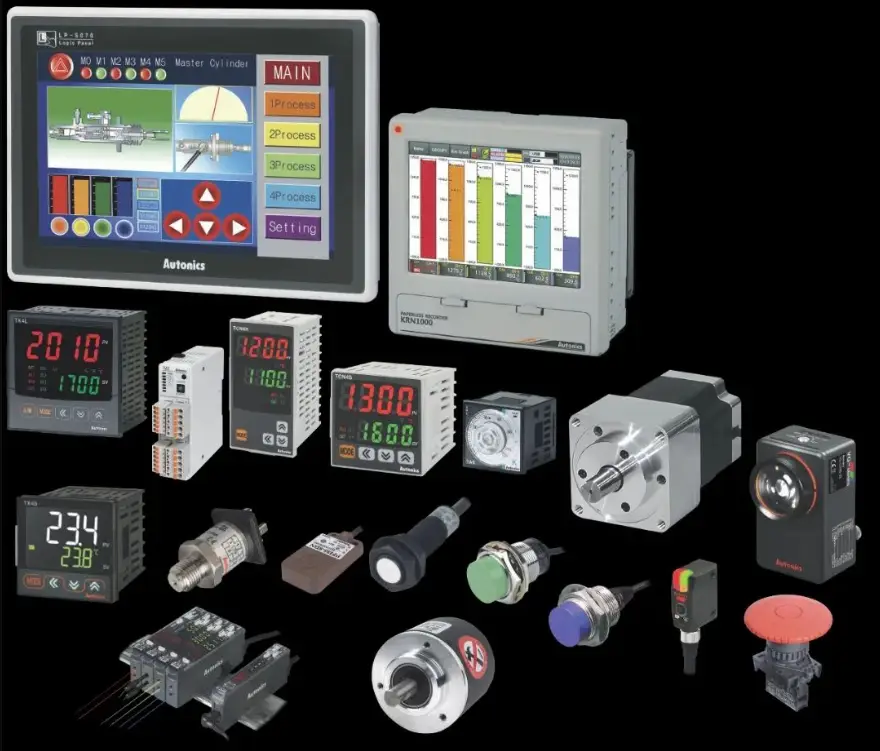

Sensors are products designed to detect the state of the world that enables electronic systems to sample their surroundings in order for control systems to act upon them. Examples include temperature, pressure, light levels, particle, sound, moisture, gas presence, proximity, field strength, vibration and movement. Sensors and Transducers are available at Seamless Process Automation from industry leading manufacturers. Seamless Process Automation is an authorised distributor for a broad range of manufacturers including Honeywell, Omron, Pepperl and Fuchs, SICK, Schneider Electric, TE Connectivity, Autonics, Datexel, Contrinex, Tecpel, Hogller, Riko and many more.

For all enquiries about sensors in Kenya, please call +254 722 880452 or Email [email protected]

Pressure Transmitter21 Products
Quick View
1000PPR Rotary Encoder
Add to cart
1000PPR Rotary Encoder in Kenya is used to determine position, direction, speed etc in industrial systems. They are installed using brackets.

Seamless Process Automation Limited supplied rotary encoders for various manufacturers including
1. Omron
2. Autonics
3. Baumer
Quick View
RTD PT100 Temperature Sensor | Nairobi | Mombasa | Kenya
Select options This product has multiple variants. The options may be chosen on the product page
WPZ-231
- PT100 Sensor with integral connector ideal for applications that require easy diconnection
- Measuring range -200 to 450 Degrees Celsius
- Metallic sheath
- Available in various diameter, length, types & connector style
- Very reliable
- Optimised fast response
Quick View
RTD PT100 Temperature Sensor | Nairobi | Mombasa | Kenya
Select options This product has multiple variants. The options may be chosen on the product page
WPZ-231
- PT100 Sensor with integral connector ideal for applications that require easy diconnection
- Measuring range -200 to 450 Degrees Celsius
- Metallic sheath
- Available in various diameter, length, types & connector style
- Very reliable
- Optimised fast response
Quick View
Water Level Sensor
Add to cart
GIC Water Level Sensor
- Fully Automatic operation enabling both draining and filling simultaneously with a single device.
- Adjustable sensitivity level from 1k to 200k Ohm
- Includes provision for Manual start.
- Protects submersible pumps against dry running and prevents overfilling.
- Enables maximum utilization of incoming liquid (eg. water) supply.
- Specially designed corrosion and shock resistant sensors to ensure trouble-free operation
Water Level Sensor Datasheet
Quick View
0 – 4000 bar Pressure Transmitter 4 – 20mA output
Add to cart

Technical Specifications;

RANGE: 0~4000 Bar.
OUTPUT: 2 wired, 4 – 20mA.
SUPPLY: 10 – 32 VDC.
SEALING: IP 66, optional IP69K.
RESPONSE TIME: (10..90%) <1ms.
PRESSURE CYCLES: > 10 million.
REVERSE VOLTAGE PROTECTION: Yes.
HOUSING INCL. WETTED PARTS: 304 stainless-steel.
MEASURING MEDIUM TEMPERATURE: -40…125.
AMBIANCE TEMPERATURE: -40…105.
STORAGE TEMPERATURE: -40…125.
OPERATING TEMPERATURE: -25…125.
COMPENSATED RANGE TEMPERATURE: -20…85.
SHOCK: 100 G, 11 msec., 1/2 Sine.
VIBRATION: 25 G peak, 20 to 2000 Hz.
CONNECTION TYPE: M18x1.5.
PRESSURE UNIT: Gauge pressure.
WEIGHT: 60g
Quick View
0 – 2000 bar Pressure Transmitter 4 – 20mA output
Add to cart

Technical Specifications;

RANGE: 0~2000 Bar.
OUTPUT: 2 wired, 4 – 20mA.
SUPPLY: 10 – 32 VDC.
SEALING: IP 66, optional IP69K.
RESPONSE TIME: (10..90%) <1ms.
PRESSURE CYCLES: > 10 million.
REVERSE VOLTAGE PROTECTION: Yes.
HOUSING INCL. WETTED PARTS: 304 stainless-steel.
MEASURING MEDIUM TEMPERATURE: -40…125.
AMBIANCE TEMPERATURE: -40…105.
STORAGE TEMPERATURE: -40…125.
OPERATING TEMPERATURE: -25…125.
COMPENSATED RANGE TEMPERATURE: -20…85.
SHOCK: 100 G, 11 msec., 1/2 Sine.
VIBRATION: 25 G peak, 20 to 2000 Hz.
CONNECTION TYPE: M18x1.5.
PRESSURE UNIT: Gauge pressure.
WEIGHT: 60g
Quick View
0 – 400 mBar Pressure Transmitter 4 – 20mA output
Add to cart

Technical Specifications;

RANGE: 0~400 m Bar.
OUTPUT: 2 wired, 4 – 20mA.
SUPPLY: 10 – 32 VDC.
SEALING: IP 66, optional IP69K.
RESPONSE TIME: (10..90%) <1ms.
PRESSURE CYCLES: > 10 million.
REVERSE VOLTAGE PROTECTION: Yes.
HOUSING INCL. WETTED PARTS: Silicon, Aluminum, 304 stainless-steel.
MEASURING MEDIUM TEMPERATURE: -20…85.
AMBIANCE TEMPERATURE: -20…85.
STORAGE TEMPERATURE: -20…85.
OPERATING TEMPERATURE: -20…85.
COMPENSATED RANGE TEMPERATURE: -20…85.
SHOCK: 100 G, 11 msec., 1/2 Sine.
VIBRATION: 25 G peak, 20 to 2000 Hz.
CONNECTION TYPE: G1/4”.
PRESSURE UNIT: Gauge pressure.
WEIGHT: 60g.
Quick View
0 – 250 mBar Pressure Transmitter 4 – 20mA output
Add to cart

Technical Specifications;

RANGE: 0~250 m Bar.
OUTPUT: 2 wired, 4 – 20mA.
SUPPLY: 10 – 32 VDC.
SEALING: IP 66, optional IP69K.
RESPONSE TIME: (10..90%) <1ms.
PRESSURE CYCLES: > 10 million.
REVERSE VOLTAGE PROTECTION: Yes.
HOUSING INCL. WETTED PARTS: Silicon, Aluminum, 304 stainless-steel.
MEASURING MEDIUM TEMPERATURE: -20…85.
AMBIANCE TEMPERATURE: -20…85.
STORAGE TEMPERATURE: -20…85.
OPERATING TEMPERATURE: -20…85.
COMPENSATED RANGE TEMPERATURE: -20…85.
SHOCK: 100 G, 11 msec., 1/2 Sine.
VIBRATION: 25 G peak, 20 to 2000 Hz.
CONNECTION TYPE: G1/4”.
PRESSURE UNIT: Gauge pressure.
WEIGHT: 60g.
Quick View
0 – 100 mBar Pressure Transmitter 4 – 20mA output
Add to cart

Technical Specifications;

RANGE: 0~100 m Bar.
OUTPUT: 2 wired, 4 – 20mA.
SUPPLY: 10 – 32 VDC.
SEALING: IP 66, optional IP69K.
RESPONSE TIME: (10..90%) <1ms.
PRESSURE CYCLES: > 10 million.
REVERSE VOLTAGE PROTECTION: Yes.
HOUSING INCL. WETTED PARTS: Silicon, Aluminum, 304 stainless-steel.
MEASURING MEDIUM TEMPERATURE: -20…85.
AMBIANCE TEMPERATURE: -20…85.
STORAGE TEMPERATURE: -20…85.
OPERATING TEMPERATURE: -20…85.
COMPENSATED RANGE TEMPERATURE: -20…85.
SHOCK: 100 G, 11 msec., 1/2 Sine.
VIBRATION: 25 G peak, 20 to 2000 Hz.
CONNECTION TYPE: G1/4”.
PRESSURE UNIT: Gauge pressure.
WEIGHT: 60g.
Quick View
0 – 60 mBar Pressure Transmitter 4 – 20mA output
Add to cart

Technical Specifications;

RANGE: 0~60 m Bar.
OUTPUT: 2 wired, 4 – 20mA.
SUPPLY: 10 – 32 VDC.
SEALING: IP 66, optional IP69K.
RESPONSE TIME: (10..90%) <1ms.
PRESSURE CYCLES: > 10 million.
REVERSE VOLTAGE PROTECTION: Yes.
HOUSING INCL. WETTED PARTS: Silicon, Aluminum, 304 stainless-steel.
MEASURING MEDIUM TEMPERATURE: -20…85.
AMBIANCE TEMPERATURE: -20…85.
STORAGE TEMPERATURE: -20…85.
OPERATING TEMPERATURE: -20…85.
COMPENSATED RANGE TEMPERATURE: -20…85.
SHOCK: 100 G, 11 msec., 1/2 Sine.
VIBRATION: 25 G peak, 20 to 2000 Hz.
CONNECTION TYPE: G1/4”.
PRESSURE UNIT: Gauge pressure.
WEIGHT: 60g.
Quick View
0 – 600 bar Pressure Transmitter 4 – 20mA output
Add to cart

Technical Specifications;

RANGE: 0~600 bar.
OUTPUT: 4~20mA.
SUPPLY: 10-32 VDC.
SEALING: IP 66, optional IP69k.
RESPONSE TIME: (10..90%) t(ms)1.
OVERRANGE PRESSURE: Up to 2x rated pressure.
BURST PRESSURE: Up to 5x rated pressure.
PRESSURE CYCLES: > 10 million.
REVERSE VOLTAGE PROTECTION: Yes.
HOUSING INCL. WETTED PARTS: 304 stainless steel.
MEASURING MEDIUM: -40…125.
AMBIANCE: -40…105.
STORAGE: -40…125.
COMPENSATED RANGE: -20…85.
SHOCK: 1000 g, 11 msec., 1/2 sine.
VIBRATION: 25 g peak, 20 to 2000 Hz.
CONNECTION TYPE: G 1/4“ male.
WEIGHT: 60g
Quick View
0 – 400 bar Pressure Transmitter 4 – 20mA output
Add to cart

Technical Specifications;

RANGE: 0~400 bar.
OUTPUT: 4~20mA.
SUPPLY: 10-32 VDC.
SEALING: IP 66, optional IP69k.
RESPONSE TIME: (10..90%) t(ms)1.
OVERRANGE PRESSURE: Up to 2x rated pressure.
BURST PRESSURE: Up to 5x rated pressure.
PRESSURE CYCLES: > 10 million.
REVERSE VOLTAGE PROTECTION: Yes.
HOUSING INCL. WETTED PARTS: 304 stainless steel.
MEASURING MEDIUM: -40…125.
AMBIANCE: -40…105.
STORAGE: -40…125.
COMPENSATED RANGE: -20…85.
SHOCK: 1000 g, 11 msec., 1/2 sine.
VIBRATION: 25 g peak, 20 to 2000 Hz.
CONNECTION TYPE: G 1/4“ male.
WEIGHT: 60g
